Windows MultiPoint Server with SBS 2011

imagesMultiPoint server can be joined to the SBS 2011 domain, just like any other server. However, before the MultiPoint server (or any other additional application server) will show up in RWA, we will have to add a special registry key and add the server name on the SBS 2011.

We will then create a RDP file for the users, where the settings are properly configured, and we will create a GPO that will push the RDP file to the desktop of the users, unless they log in on the MultiPoint server.

This article has the three steps on how to achieve all of this.

Step 1: Add registry key on SBS 2011 to have RWA show the WMS
Step 2: Create RDP file for users
Step 3: Create a GPO that will send the RDP file to the desktop of the user

Step 1: Add registry key on SBS 2011 to have RWA show the WMS

On your SBS Server, Click Start, All Programs, Accessories, click “Command Prompt”.

regkey add wms 1

Type “regedit”.

regkey add wms 2b

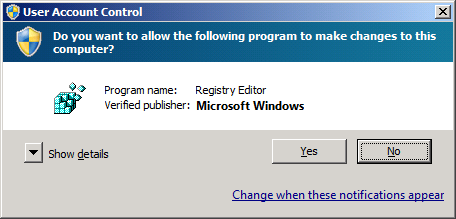

Click “Yes” to allow access.

regkey add wms 2c

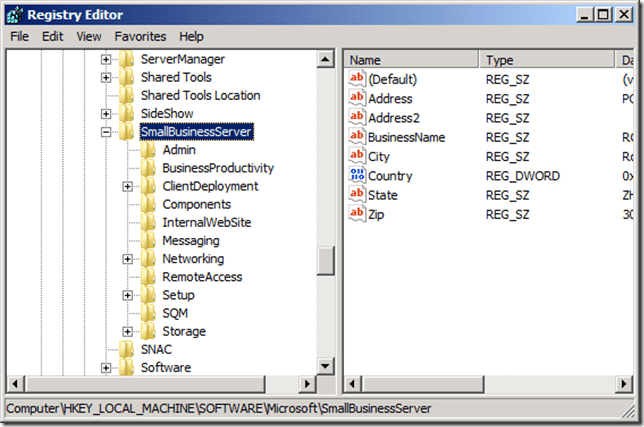

Find the HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SmallBusinessServer key and expand it.

regkey add wms 4

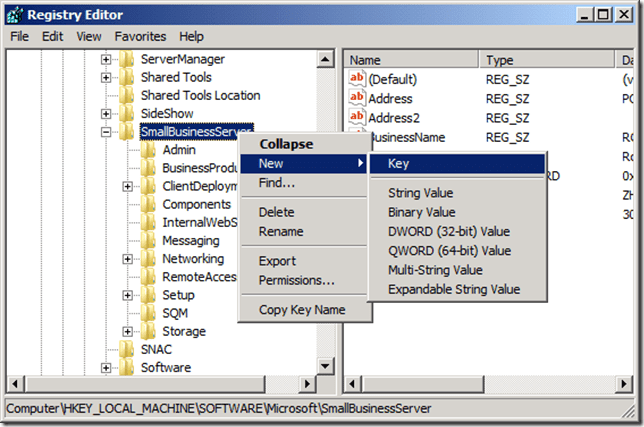

Right click the SmallBusinessServer key and select New, Key.

regkey add wms 4a

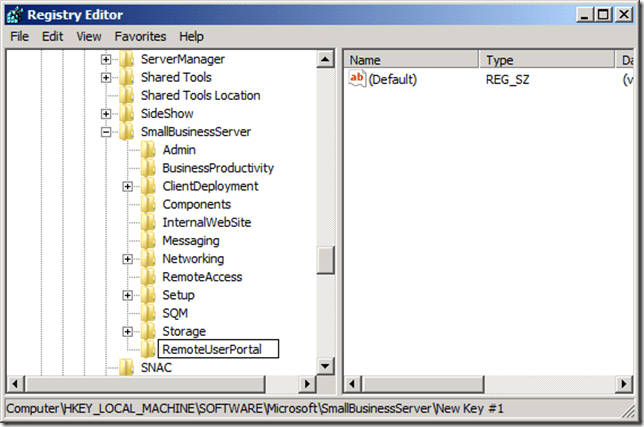

Type “RemoteUserPortal”.

regkey add wms 5

Click Enter then right click the RemoteUserPortal key and select New, Multi-string Value.

regkey add wms 6

Type “TsServerNames” and click Enter twice.

regkey add wms 7

Type in the name of the server you want to add. If you want to add multiple servers, put each name on a different line. Then click OK.

regkey add wms 8

regkey add wms 9

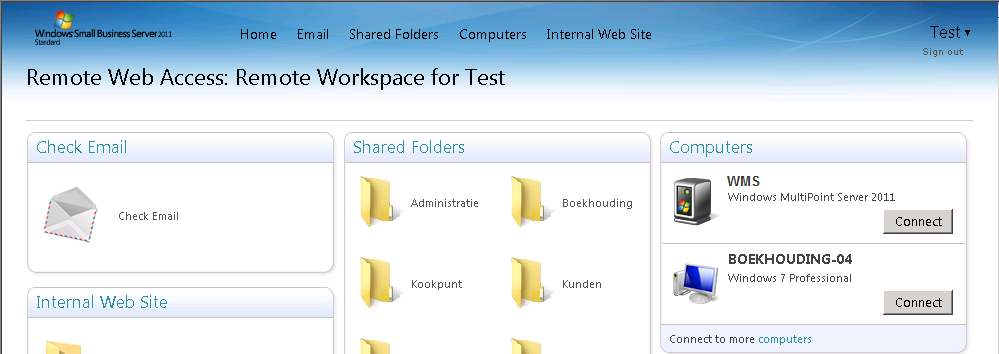

Close regedit. The RWA will now show the MultiPoint Server for the users.

regkey add wms 10

You can also automate this process by using a PowerShell script from Robert Pearman.


Step 2: Create RDP file for users

Start, All Programs, Accessories, Remote Desktop Connection

wms rdp 0

In the Computer field fill in the name of the WMS server, then click the Options button.

wms rdp 1

Make sure that the user field is empty.

wms rdp 2

Select the Experience tab and set it to LAN (10 Mbps or higher) with the dropdown button. This will ensure that the user has the best display options, so they can change the desktop background.

wms rdp 3

Select the General tab and click the Save As..” button and save it to a location that is accessible for all users. In this case we are using the Public Downloads folder in the Public share that should have access for all users. We give it a name and click the Save button. After that we close the RDP dialog.

wms rdp 4


Step 3: Create a GPO that will send the RDP file to the desktop of the user

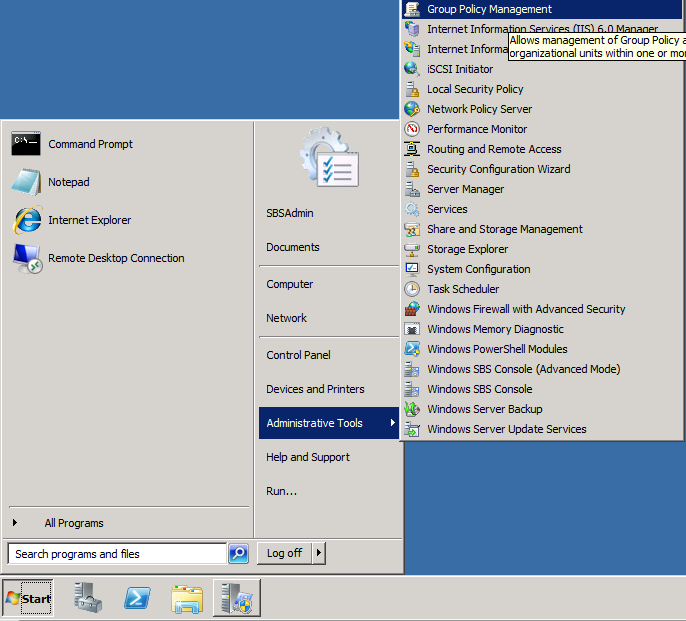

Start, Administrative Tools, Group Policy Management.

gpo 0

Expand your forest, Domains and your local AD domain. Select and right click Group Policy Objects and click New.

gpo 1

Type in a Name for this new object, for example “WMS RDP”, then click OK.

gpo 2

Right click the newly created GPO and choose Edit.

gpo 1a

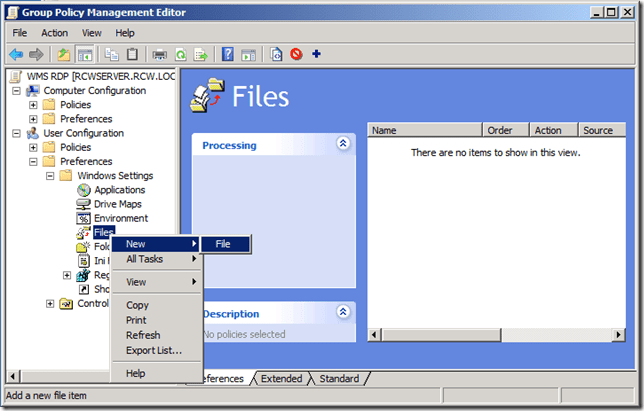

Go to the User Configuration, Preferences and right click Files, choose New, File

gpo 4

In the Source File(s) field browse using the button.

gpo 5

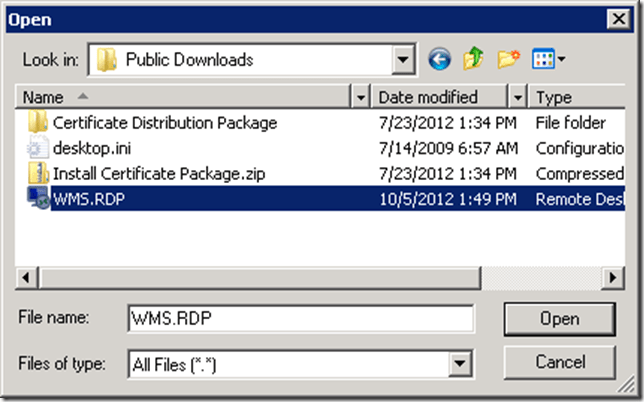

Browse to the Network, server name, share name and select the WMS RDP file that you created in the earlier step, then click Open. Do not use the local hard disk on the server to browse to that file, use the UNC path!

gpo 6

In the Destination file type ”%userprofile%\desktop\wms.rdp”.

gpo 7

We will want to exclude the WMS server from getting the RDP file when a user is logging in. Click the Common tab and select the “Item-level targeting” check box, then click the button Targeting… button.

gpo 8

Click New Item and select Computer Name.

gpo 9

Use the browse button (….) to select the WMS server then click OK.

gpo 10

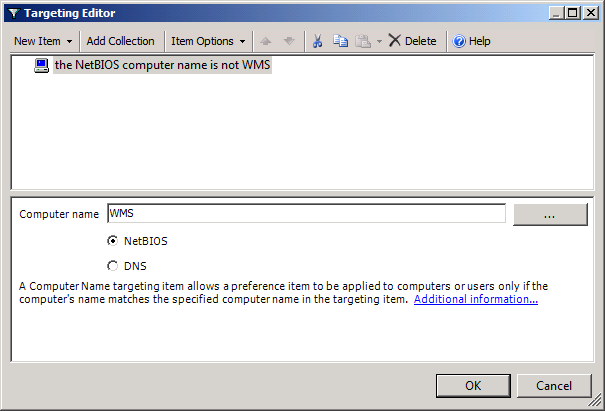

Click the Item Options dropdown box at the top and select “Is not”.

gpo 10b

Click OK to save the properties.

gpo 10c

Click OK to close the properties screen. And another OK to close the File properties dialog.

gpo 11

Close the Group Policy Management Editor.

We will now have to create the link to link this GPO to the SBSUsers OU. Right click the SBSUsers OU in the MyBusiness\Users OU and select “Link an Existing GPO…”.

gpo 12

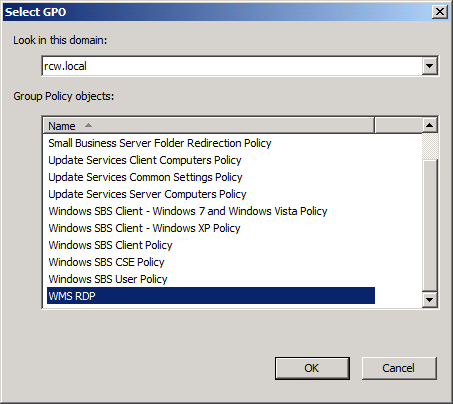

Select the WMS RDP GPO and click OK.

gpo 13

gpo 13b

When a user logs in on a workstation, the WMS RDP icon will be placed on the users’ desktop.

gpo 14

Marina Roos SBS-MVP

Hopefully you found this article useful, and can i give a warm welcome back to the land of blogging to Marina, very happy to have her publish her articles here! – Rob
