Enable DirectAccess on Windows Server 2012 Essentials
October 15, 2012 125 Comments
This post is now quite out of date and the instructions within are no longer reliable. Please refer to Microsoft’s own document online for the relevant steps.
http://technet.microsoft.com/en-us/library/jj204618.aspx
One of the coolest improvements in Server 2012, is the simplification of DirectAccess. Not just the steps to enable it, but the requirements for your infrastructure to support it. In the past it was beyond most SMBs due to the need to have 2 consecutive public IPs a dedicated DA server, IP 6to4 translation capable equipment, and not to mention Windows 7 Enterprise, which few SMBs deploy. Moving into the 2012 line of products DA has become much more available to SMBs with the reduction in infrastructure requirements. Taking Essentials as an example, we can now run DA using just a standard Internet connected router, and with just our Essentials box as the DA endpoint.
Sadly, the requirement to use an Enterprise level Client OS remains (or 7 Ultimate), and with changes to the way Windows 8 Enterprise will be purchased it may yet prove to be a nice to have feature, but one few spend the money to implement. If you consider perhaps using Essentials in conjunction with maybe some like Windows Intune, then perhaps it can start to make sense for an SMB sized budget or as part of an MSP style offering.
Personally i think it is very exciting to even have the possibility of using it available, it allows for the creation of some interesting scenarios for deployment such as hosting Essentials boxes, without the need for dedicated VPN tunnels to the data centre.
If you don’t know, DirectAccess is a ‘clientless’ permanent VPN between a computer and the corporate network. It allows for the computer, not just the user, to have full access to internal resources, from any internet connection that supports HTTPS. So, for example if i have an internal server named Server01, i can sit in Starbucks, open up Windows Explorer and go to \\Server01 and i can access the resources. Similarly if the Admin needs to deploy a GPO change, this will apply as soon as the GPO refresh interval expires, rather than having to wait for the computer to go back to the corporate lan.
I am by no means an expert, in DirectAccess or anything else, so my understanding of, or explanation of DA may be slightly off in places, but here are some useful resources where you can study DA in more detail.
- http://en.wikipedia.org/wiki/DirectAccess
- http://technet.microsoft.com/en-us/library/jj204618.aspx
- http://blog.msedge.org.uk/2012/08/windows-server-2012-directaccess.html
As with most of my blog posts, i am just taking someone else’s ideas and making them look good a little easier to follow. With that in mind, here are the official instructions on how to enable DA on your Essentials Server.
For this setup i have not done anything special, i have completed the installation of Essentals and run the Setup Anywhere Access wizard, i have enabled my server to be connected to using either VPN or the RWA. I have also installed a publically trusted SSL Certificate installed, and I have a single Windows 8 Enterprise client connected to the server.
Install RSAT Tools
The first step in the Microsoft guide is to install the RSAT Tools. Which can be done easily through Server Manager. Here lies the first problem, with the instructions live on todays date (15th October 2012) The Server Manager icon is no longer on the task bar by default (as it was in early betas) you find it by opening…
Actually you know what.. Just use PowerShell it’s quicker to explain.
Open an Elevated PowerShell window and type in:
Add-WindowsFeature –Name RSAT-RemoteAccess-MGMT
After a few seconds the required tools are installed.
Change to a Static IP Address
The next step is to put your Server on a static IP address. There are a couple of considerations to make here before we go ahead and do that. Firstly, DHCP is generally going to be running on your router in an Essentials network, that is certainly the designed scenario. If this is the case, switching your server over to a static IP may be something you need to consider more carefully. Basically you just need to make sure that any DHCP issued addresses will not overlap with any IP you give your server. Most routers that support DHCP will allow you to set a start and end address, so make sure that your Servers IP is outside that range.
Once you are happy you have chosen an address that is suitable, we can go ahead and configure our adapter.
Because i like PowerShell so much I’m going to tell you that you can now very easily configure TCP/IP properties using PowerShell. However, if you are familiar with TCP/IP properties you can still do this via the GUI, and in fact, if you are remote desktop’d into your server, it is better to do this via the GUI as otherwise you will likely cut yourself off!
For those that are interested in the PowerShell method, you can make use of the following new CMDLets.
More info on the new TCP/IP CMDLets can be found here.

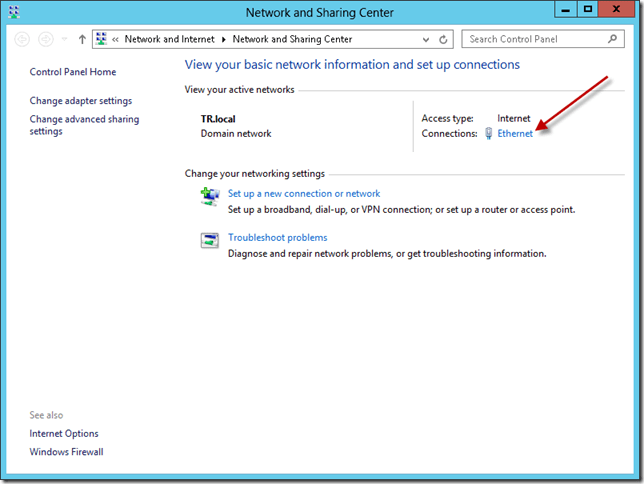

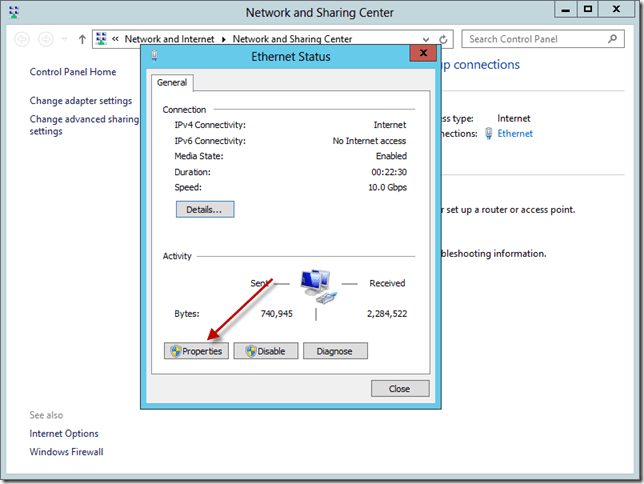

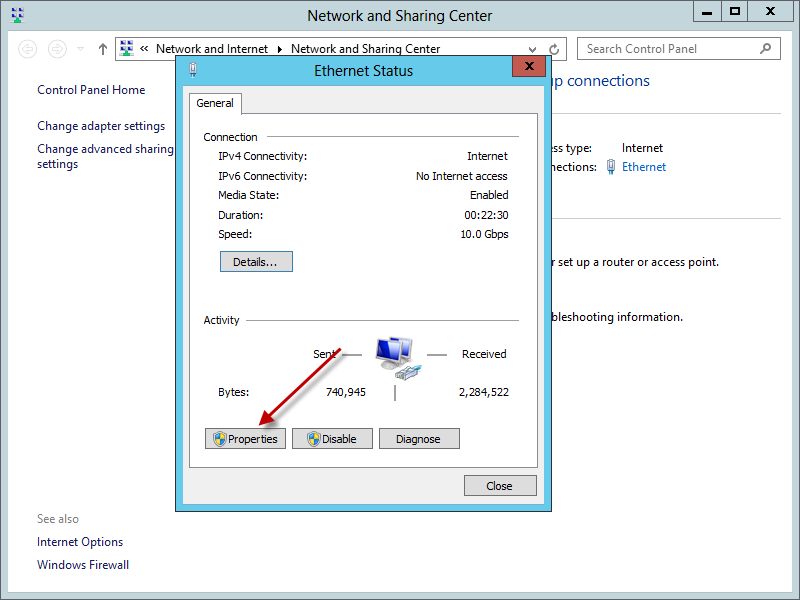

So, to do this through the GUI, go to the Network and Sharing Center, Click on the link for the network interface properties.

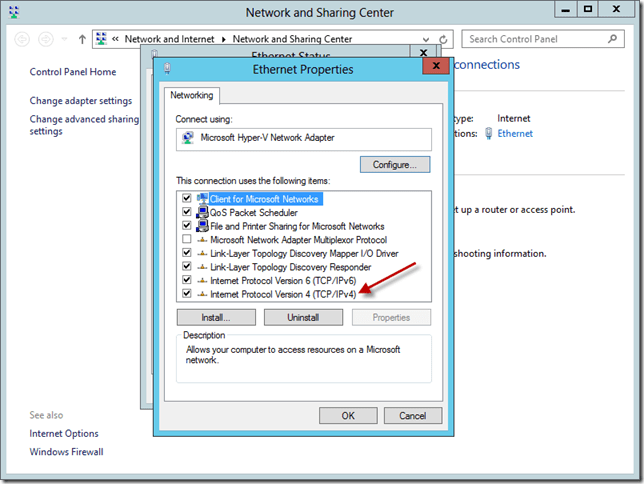

Then click Properties, then find TCP/IP version 4, select that and hit properties. You can fill out all of your desired info here.

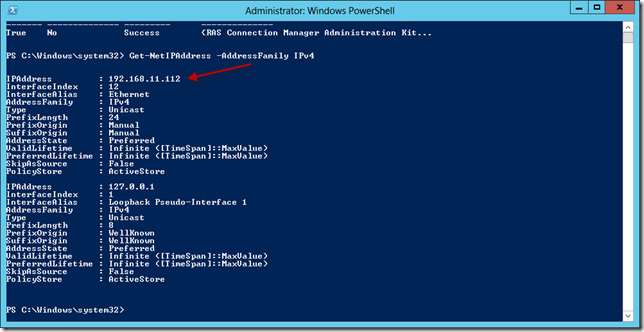

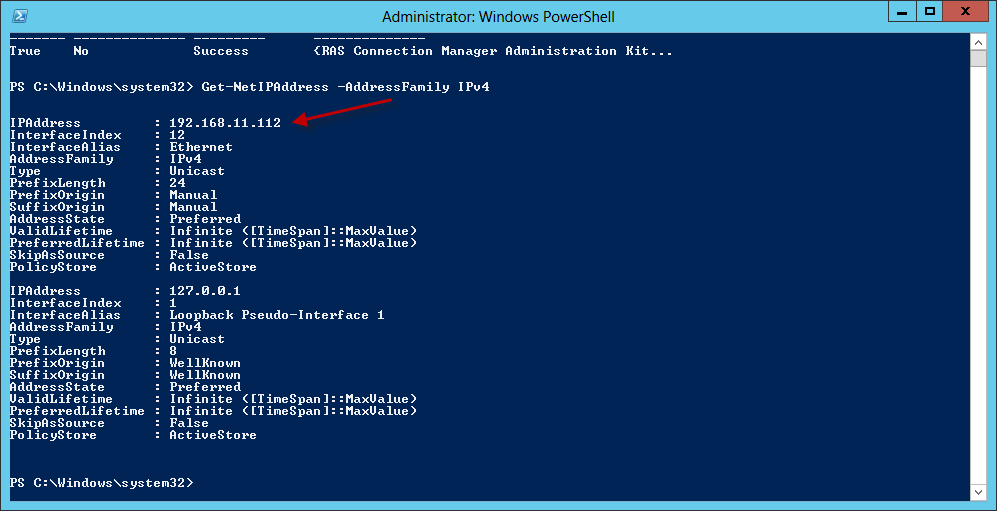

You can use one of the new PowerShell CMDLets to review your configuration.
Modify Web Server Certificate Template.
We need to modify the security permissions on the Web Server Certificate template so we can enroll our Essentials server for a certificate. This is easy enough to do.
First we need to open the Certificate Authority, which we can do from Start > Administrative Tools > Certificate Authority.

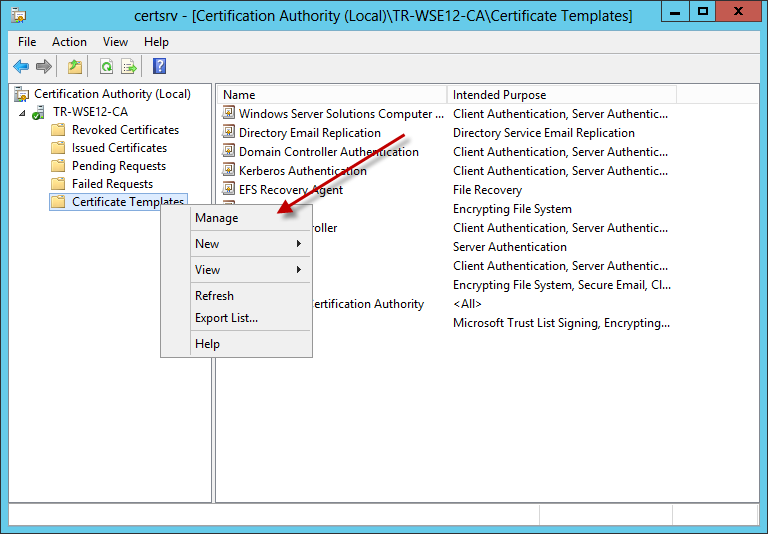

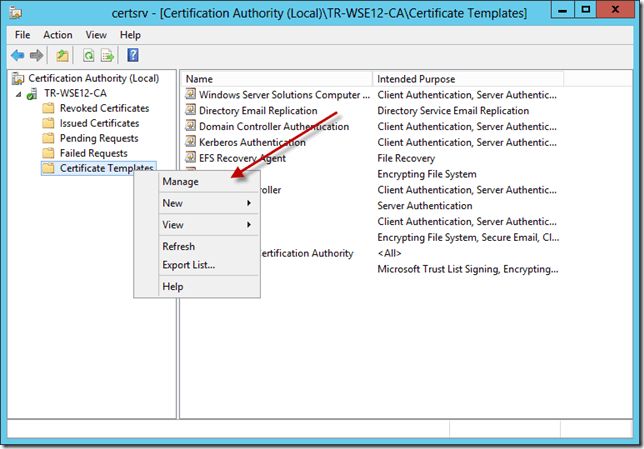

When the MMC opens, expand your Server Name and find ‘Certificate Templates’ right click this, and click Manage.

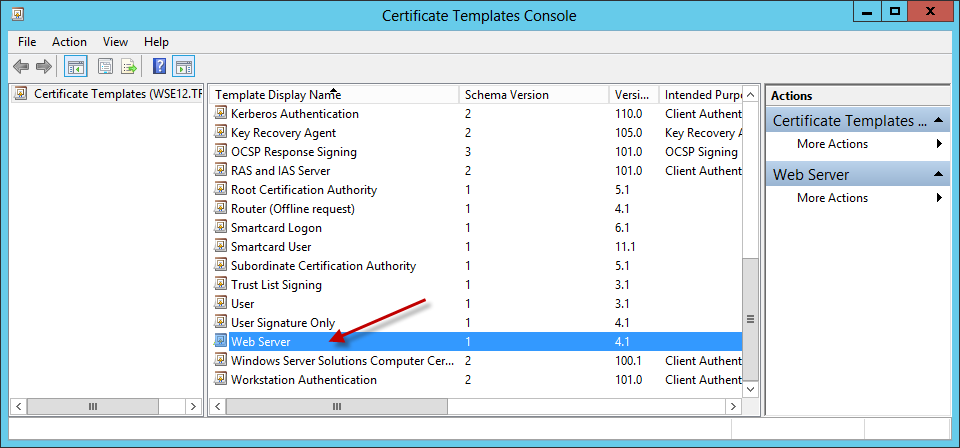

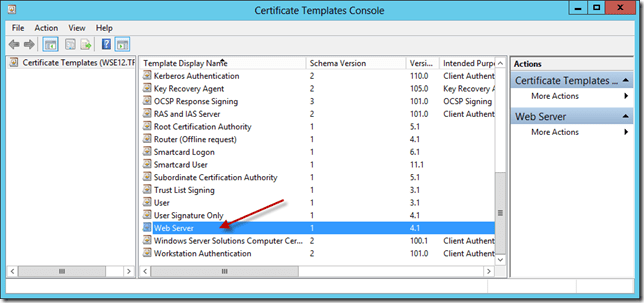

A new window will open with all the different templates that are available. Find Web Server, and right click that, and go to properties.

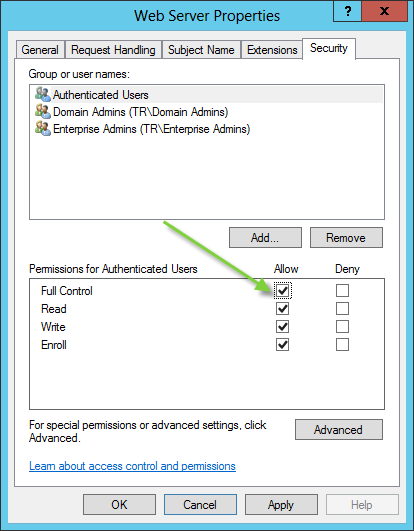

Go to the Security tab, and modify the Authenticated Users, so that they have Full Control.
Click Ok to save that change, and then you can close the CA window.
Add a DNS Host Record

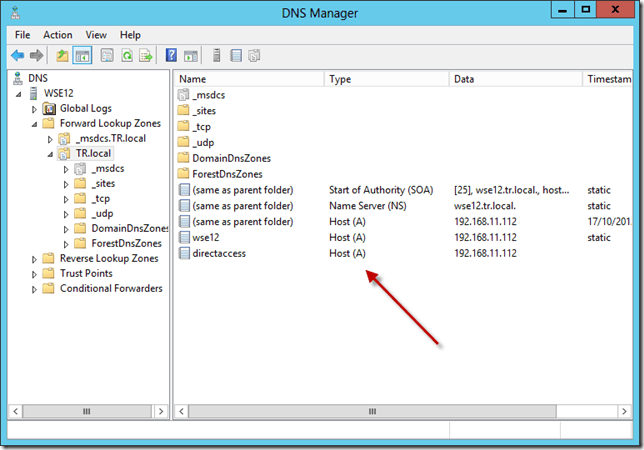

Now we need to add a new DNS record on the internal DNS Server, creating a name to be used as a Network Location for DA Connectivity testing, and if you don’t understand what that is, then you are not alone. Just know it has to be unique from any other name you might use. I am going to use ‘DirectAccess’
Go to Start > Administrative Tools > DNS

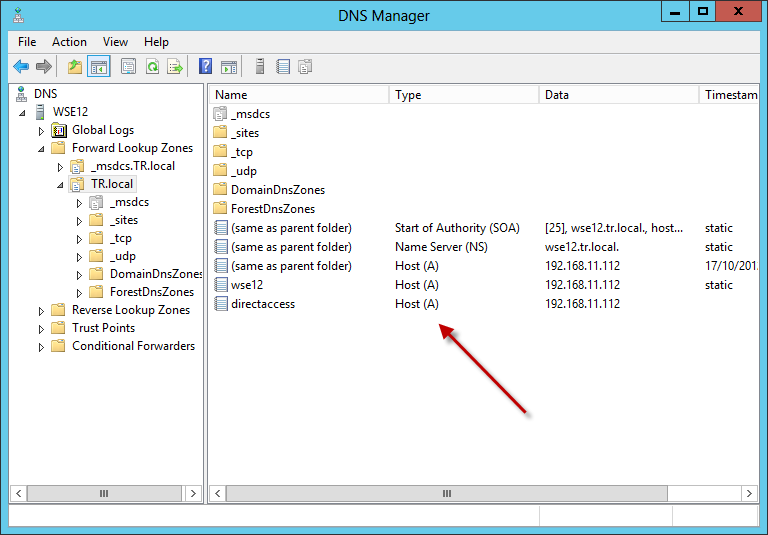

Expand Forward Lookup Zones, and Expand your Internal Domain Name (ie. TR.local) Right click the details pane and click New Host (A or AAAA)

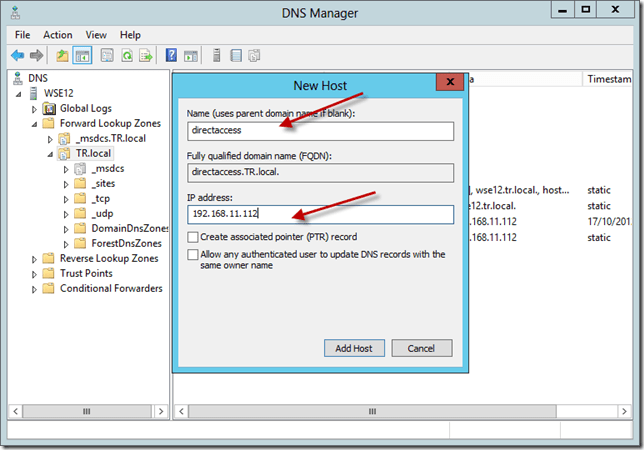

In the Name field, enter the name you want to use for the DirectAccess endpoint, as i said, i am using DirectAccess as it is nice and easy also enter in the IP address of the Essentials server.
Click Add Host to add the record, then click Done.
Enroll a Web Server Certificate

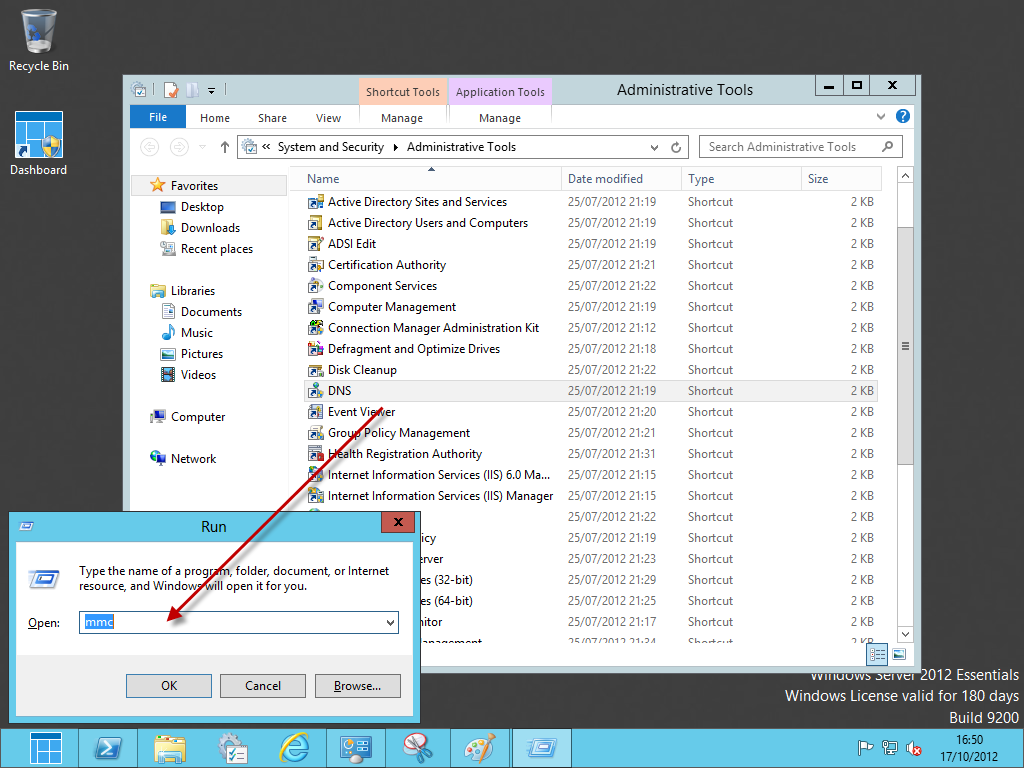

To enrol for a certificate, we need to add the Certificates snap-in for the Local Computer.
You can try and fiddle about with the metro interface and your mouse, or hit Windows Key + R and type in MMC.

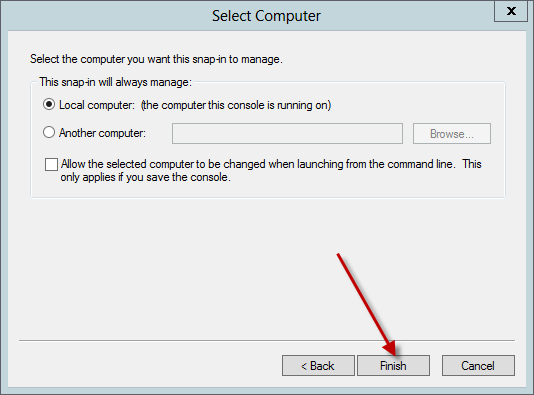

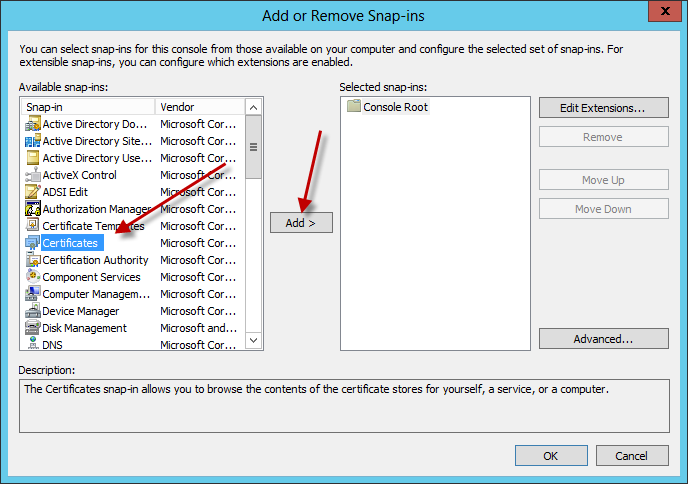

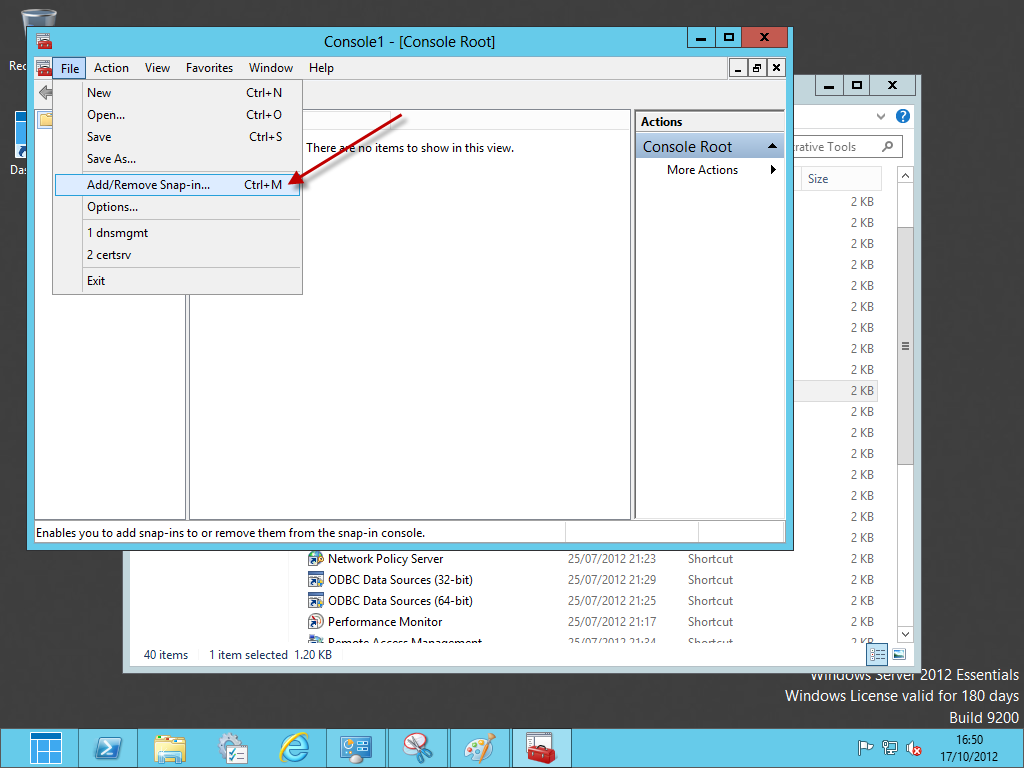

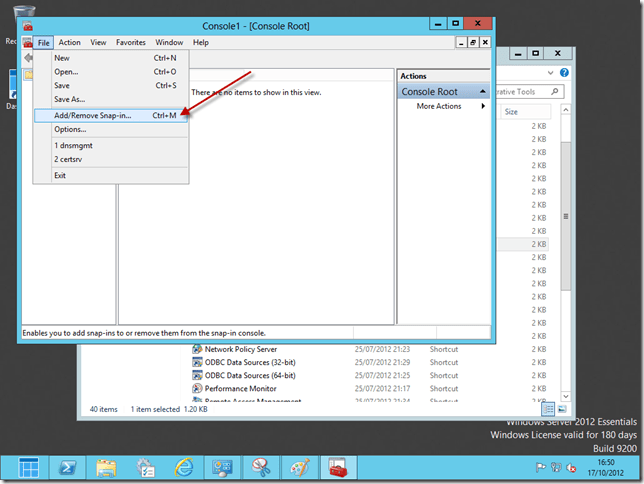

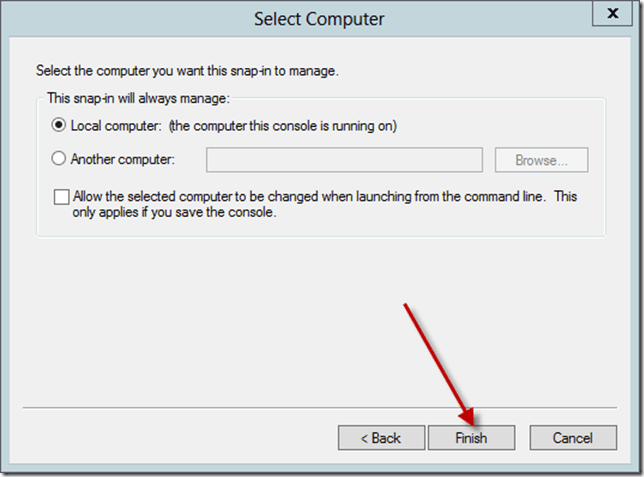

In the MMC window, click File, Add Remove Snap-in, Choose ‘Certificates’ then click Add. Choose Computer Account, then Local Computer, and click Ok.

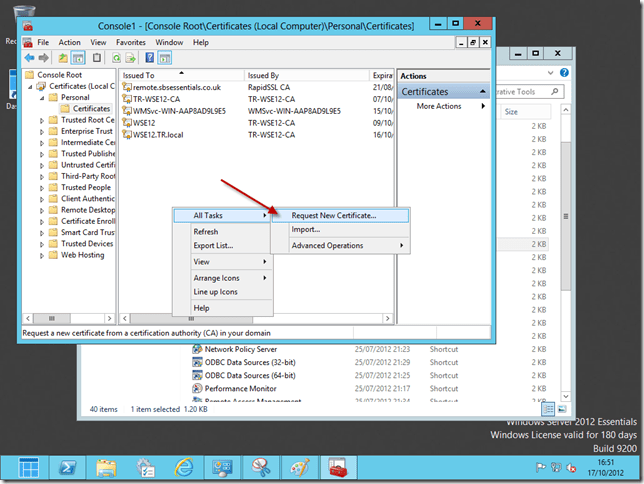

In the Certificates Snap-in, expand Personal. In some free space, right click, select All Tasks and click Request New Certificate.

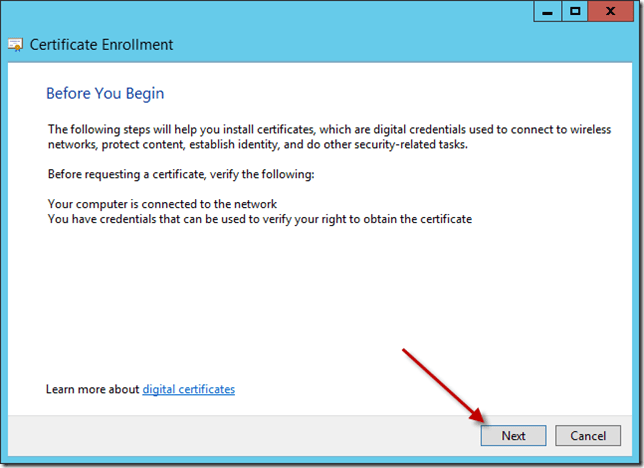

Click next on the ‘Before you begin page’ then next again on the Enrollment Policy page.

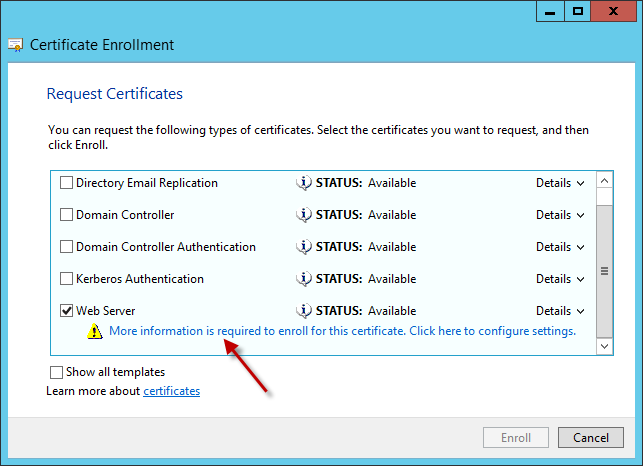

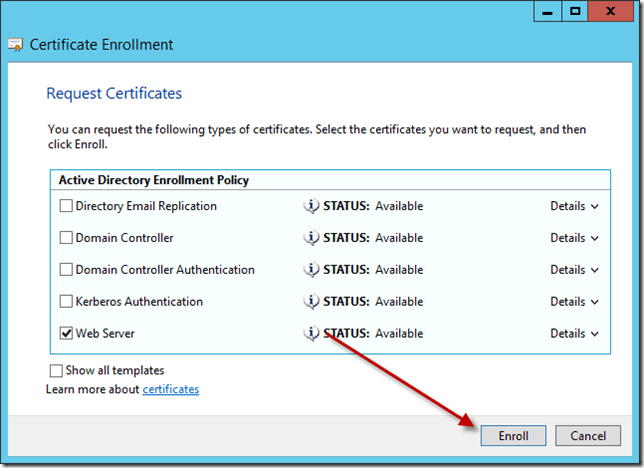

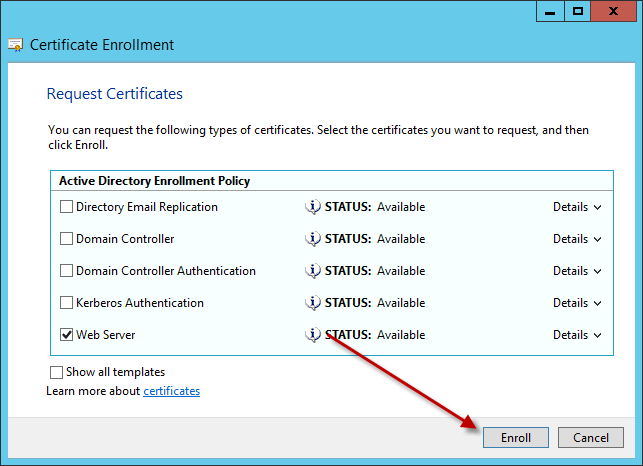

On the Request Certificates page, find Web Server, then click underneath where it says ‘More Info Required’

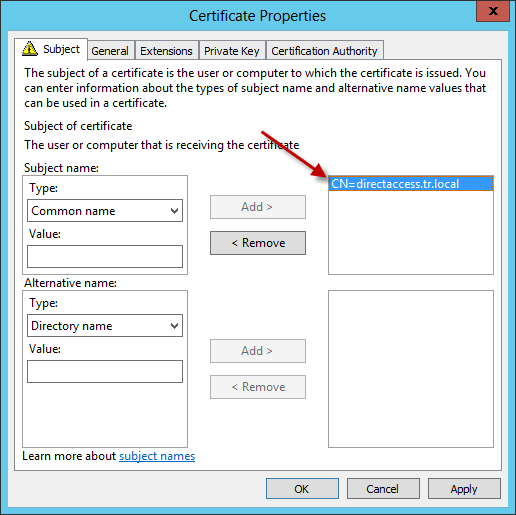

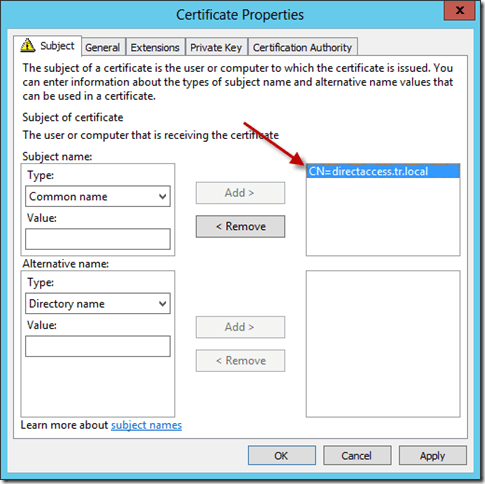

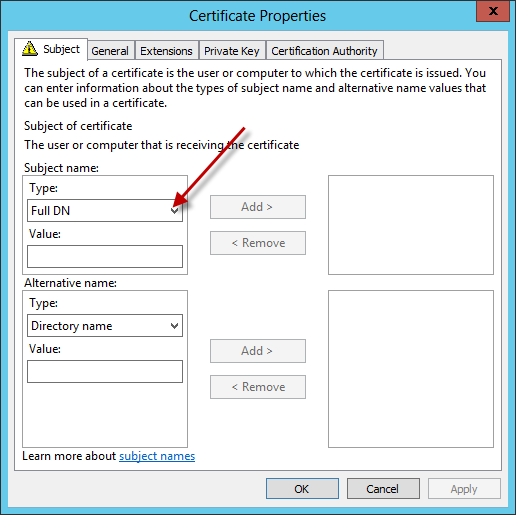

Under ‘Subject Name’ use the dropdown menu to Select ‘Common Name’ and in the value box, enter a name for your DirectAccess certificate.
This certificate is completely separate from any used on the internet, and needs a unique name.
I am using ‘DirectAccess.TR.Local’
Enter your value, and click Add.
Click Ok, and click Enroll. Your certificate should now be issued and automatically enrolled.

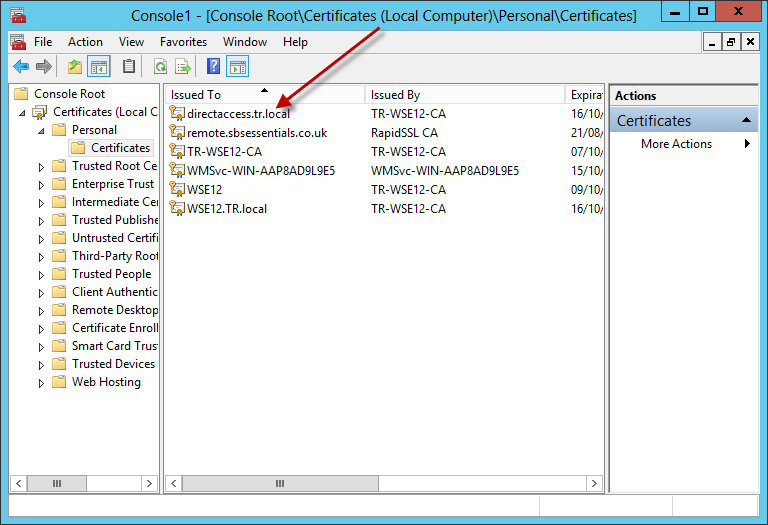

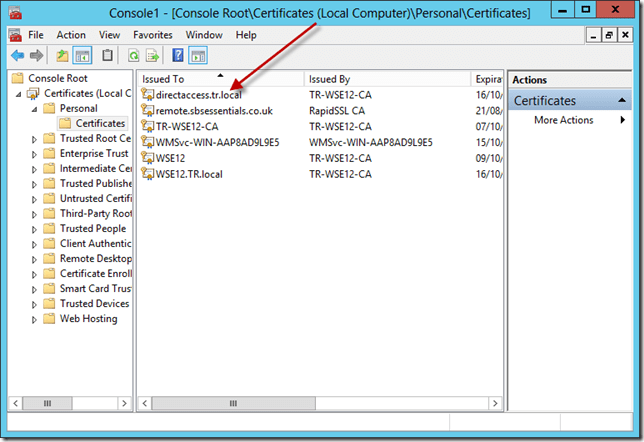

You should see your new certificate showing in the MMC.
Enable DirectAccess
If you are also reviewing the Microsoft guide, then we are now at Step 4.
We now need to open up the Remote Access Management console. We can do that a number of ways, but i have pinned the Administrative Tools folder to the task bar so it can be easily accessed via the Desktop. Inside that folder is the Remote Access Management console.

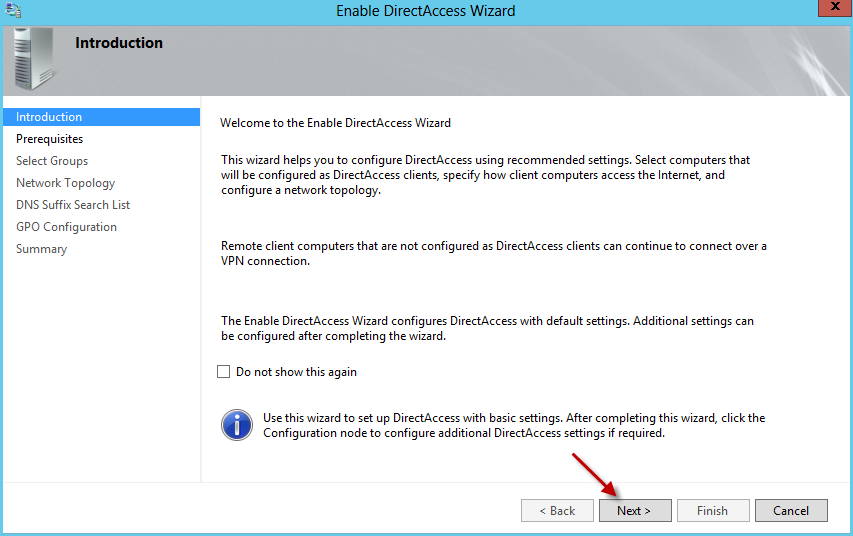

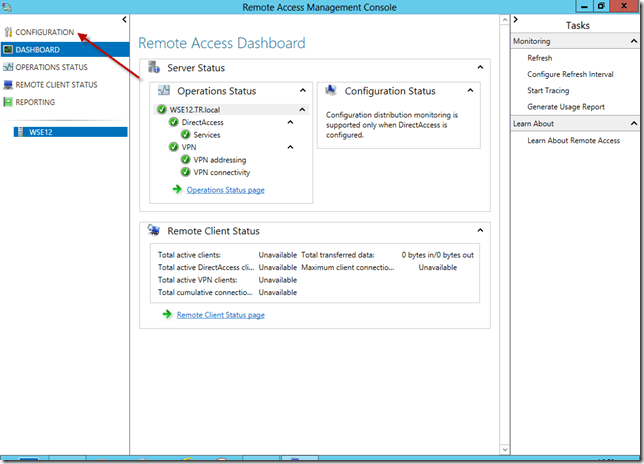

Once inside, go to the Configuration option. The Enable DirectAccess wizard will start.

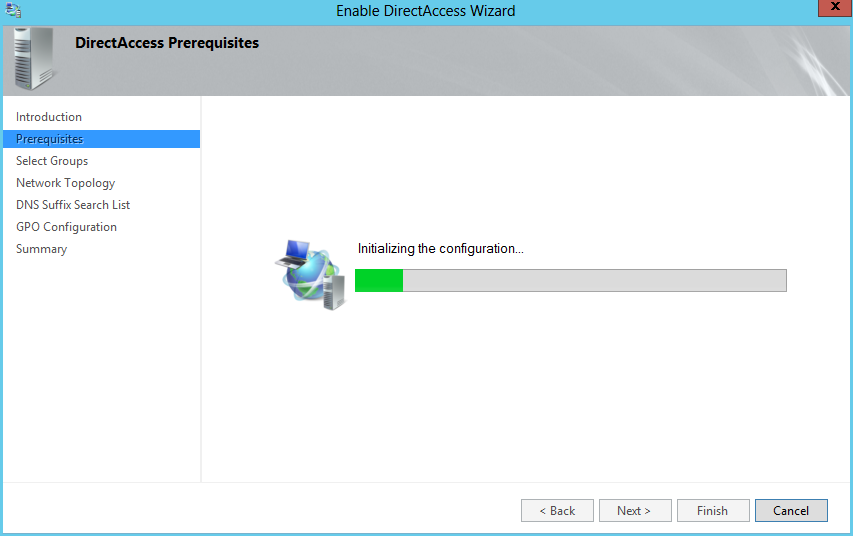

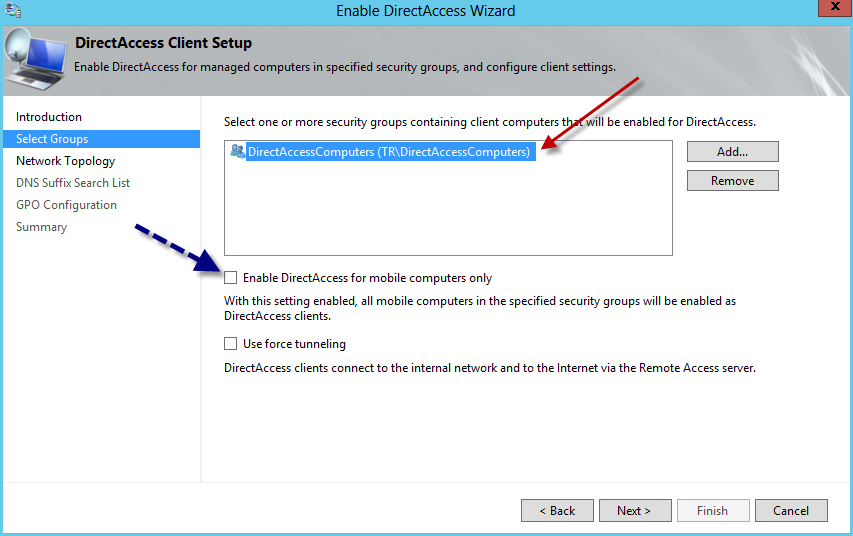

After the Pre-Requisite check you will be prompted to add a specific group for computers that will be enabled for DA.
I created a new group called ‘DirectAccessComputers’ for this purpose.
You can decide if you want to enable DA for mobile computers only, i am not doing that as i have some VMs that will be using DA for testing.

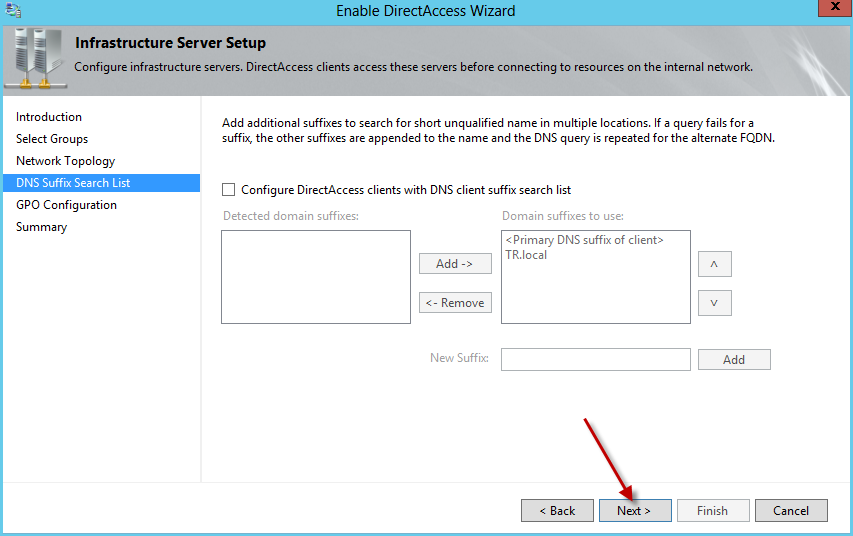

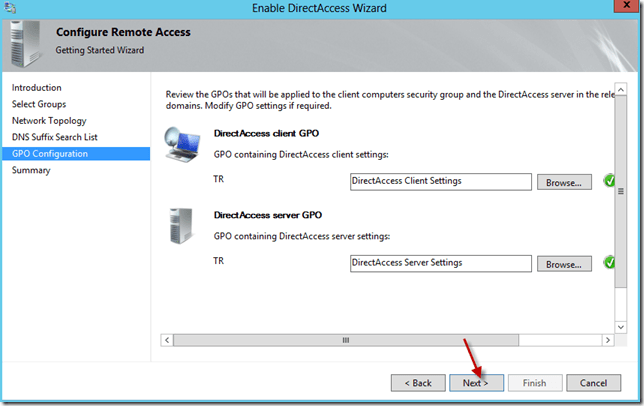

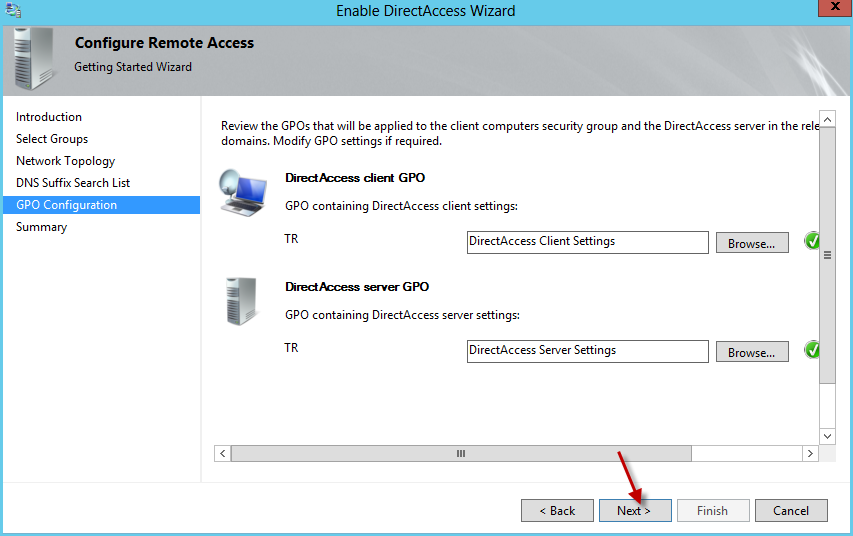

The rest of the screens in the wizard can be left on there defaults.

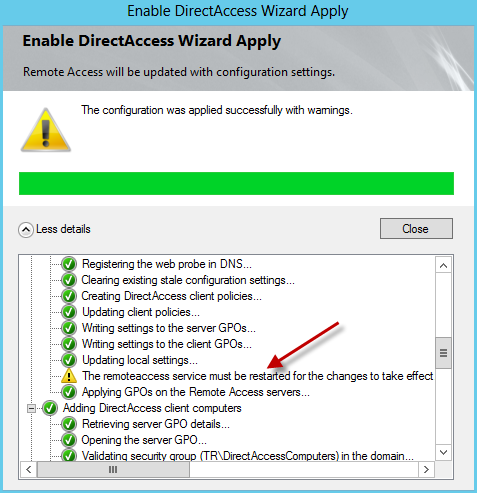

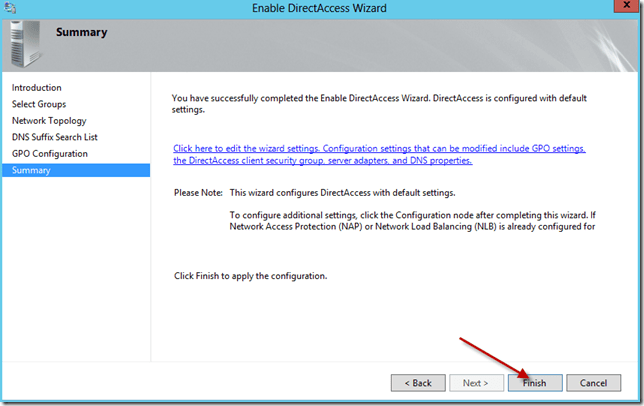

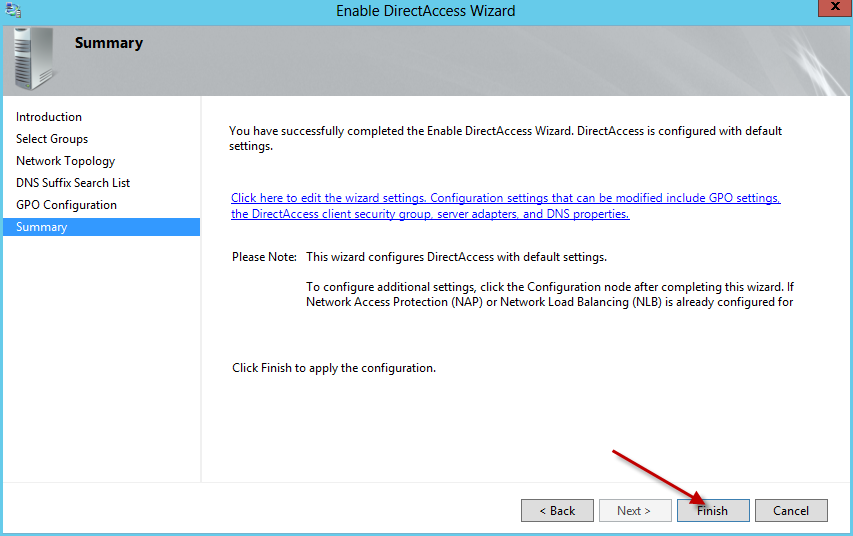

When you are done, click Finish. You will notice the wizard may have completed with a warning, this is due to the Remote Access service needing to be restarted.
Now, we have some other tasks to accomplish.

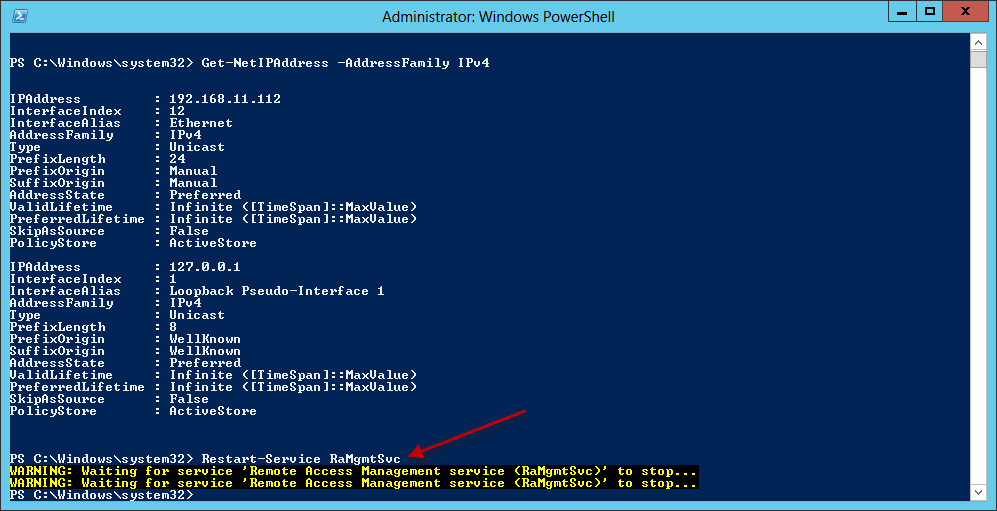

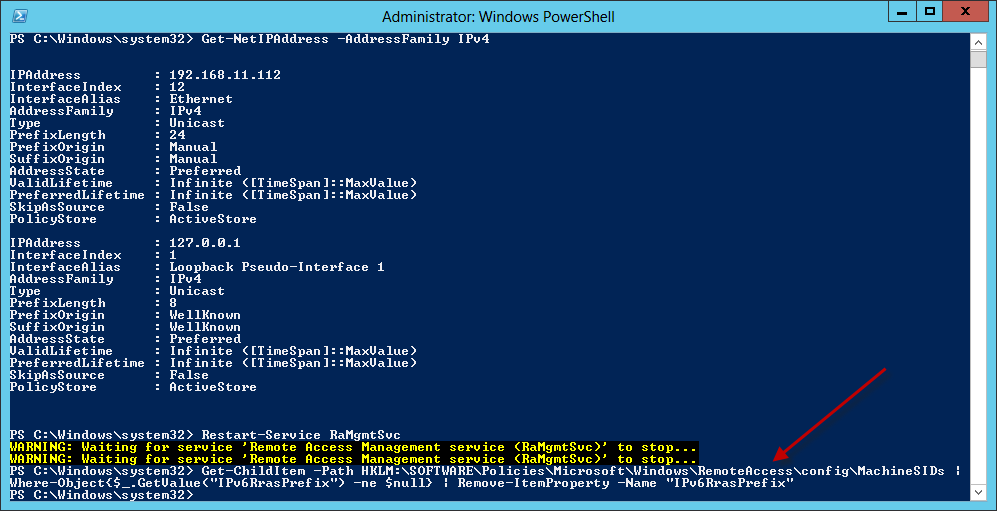

First we need to restart a service, you can do this through PowerShell,
Restart-Service RaMgmtSvc
Next, we need to remove an IPv6 Prefix from a registry key. Again you can do this from PowerShell.
Get-ChildItem -Path HKLM:\SOFTWARE\Policies\Microsoft\Windows\RemoteAccess\config\MachineSIDs | Where-Object{$_.GetValue(“IPv6RrasPrefix”) -ne $null} | Remove-ItemProperty -Name “IPv6RrasPrefix”
Next is Step 4c. Which we can ignore for the time being* will explain later.

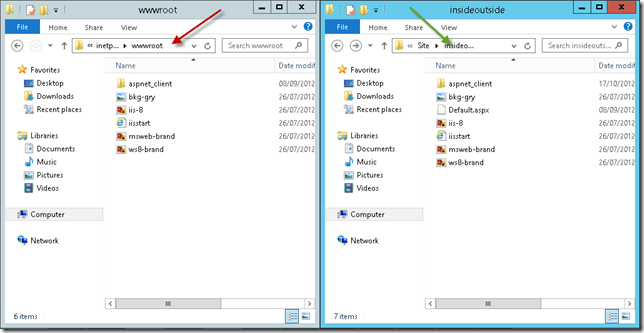

We need to copy some files now. Open Windows Explorer and navigate to C:\Inetpub
Copy the contents of the WWWRoot folder to C:\Program Files\Windows Server\Bin\WebApps\Site\InsideOut Folder.
You also need to copy the C:\Program Files\Windows Server\Bin\WebApps\Site\Default.aspx file to the InsideOutfolder.

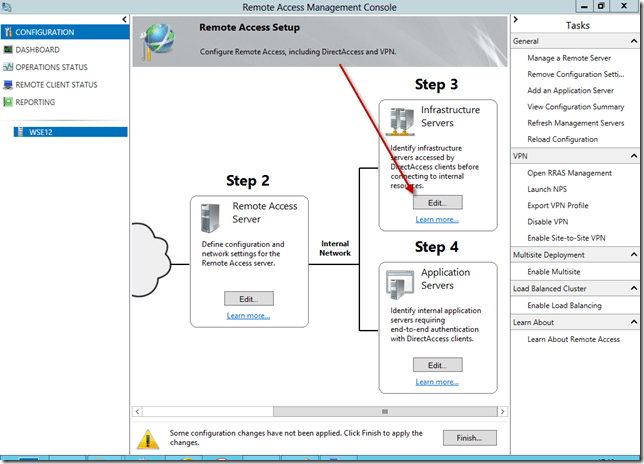

Now, we need to go back into the Remote Access Management console, go to Configuration. Notice that the details pane is like a little network map, each object has a step number associated with it. We need to look at Step 3.

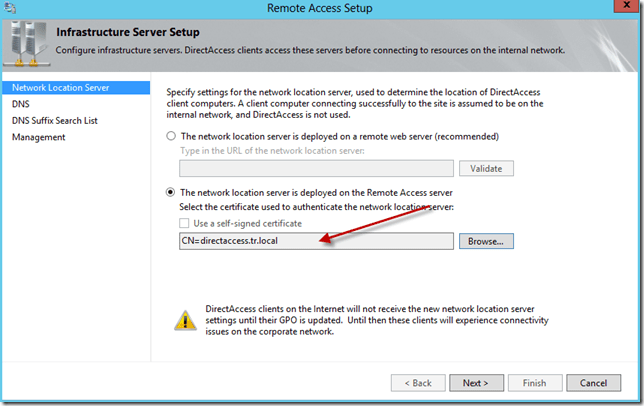

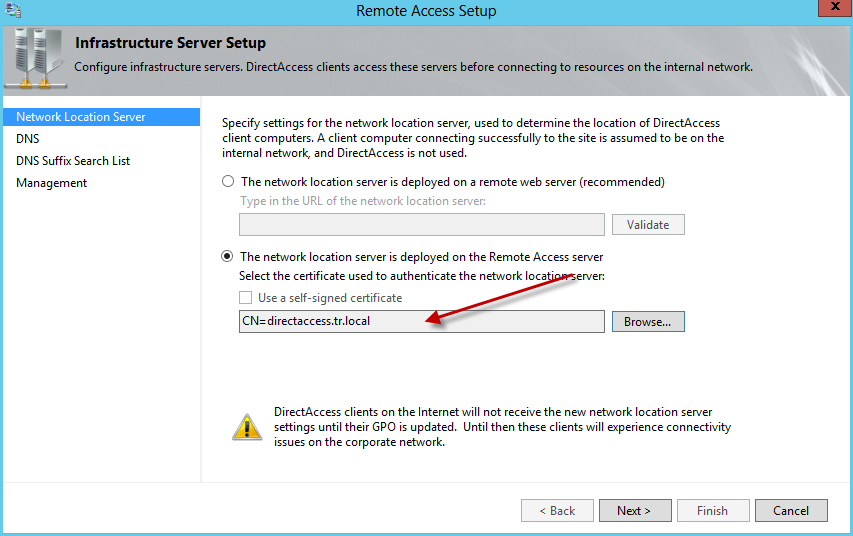

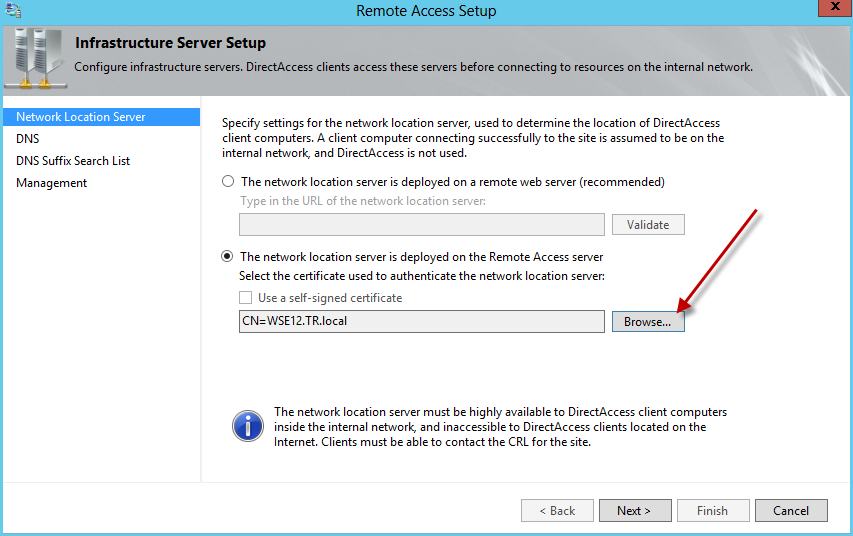

Click on Edit, and then the Infrastructure Server Setup wizard starts. You must click on browse, and find the Server Certificate we created earlier for ‘DirectAccess.tr.local’.
Once that is selected, click next and complete the wizard leaving the other settings as they are.

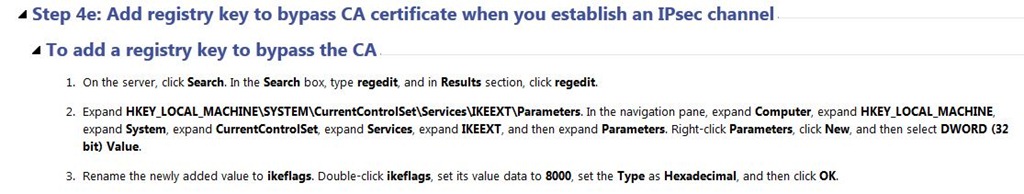

Next we need to add another registry key. The documentation on TechNet is again, a little unclear here, and actually caused me to have a lot of problems.
The steps say to create a new Registry item, named ikeflags. No problem there. Then it says to modify the value to 8000 then set the type to Hex. Doing this causes the Hex value to be the Hex equivalent of 8000 (decimal). The problem with that is that you get the wrong number.
8000 (Decimal) = 1F40 (Hex)
But what we actually want is..
32768 (Decimal) = 0x8000 (Hex)
So, given that, i thought it would just be easier to use…. you guessed it.
You can do this very easily through PowerShell using the following command.
New-ItemProperty –Path HKLM:\System\CurrentControlSet\Services\IKEEXT\Paramters –Name ikeflags –PropertyType DWORD –Value 32768
Next we will be editing some Group Policies.
Microsoft currently have a PowerShell command suggested here to help with this step, the problem is, it doesn’t work., at least it didn’t for me.
The command published is this:
Get-NetIPAddress -InterfaceAlias IPHTTPSInterface | Get-NetIPAddress -PrefixLength 128)[1].IPAddress
The eagle eyed amongst you will notice a random ) after the PrefixLength of 128. This causes the command to fail, indeed removing it also causes it’s own problems. I can’t work out what the correct command is meant to be. So i would suggest you use this command instead.

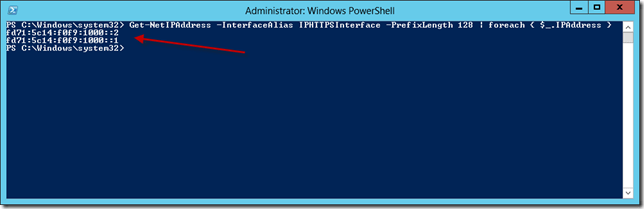

Get-NetIPAddress –InterfaceAlias IPHTTPSInterface –PrefixLength 128 | ForEach { $_.IPAddress }
This will give you the relevant IP Addresses you need to use in the following two GPOs.
So given those IP Addresses, we can now edit our GPOs. Open up Group Policy Management from the Administrative tools folder.
Expand Your Domain, and find the GPO named ‘DirectAccess Client Settings’
Right click this, and choose Edit.
Under Computer Configuration, Expand Windows Settings, and click on Name Resolution Policy.
In the details pane, scroll down and click on the Policy that matches your internal domain suffix (ie .domain.local)
Click on Edit.

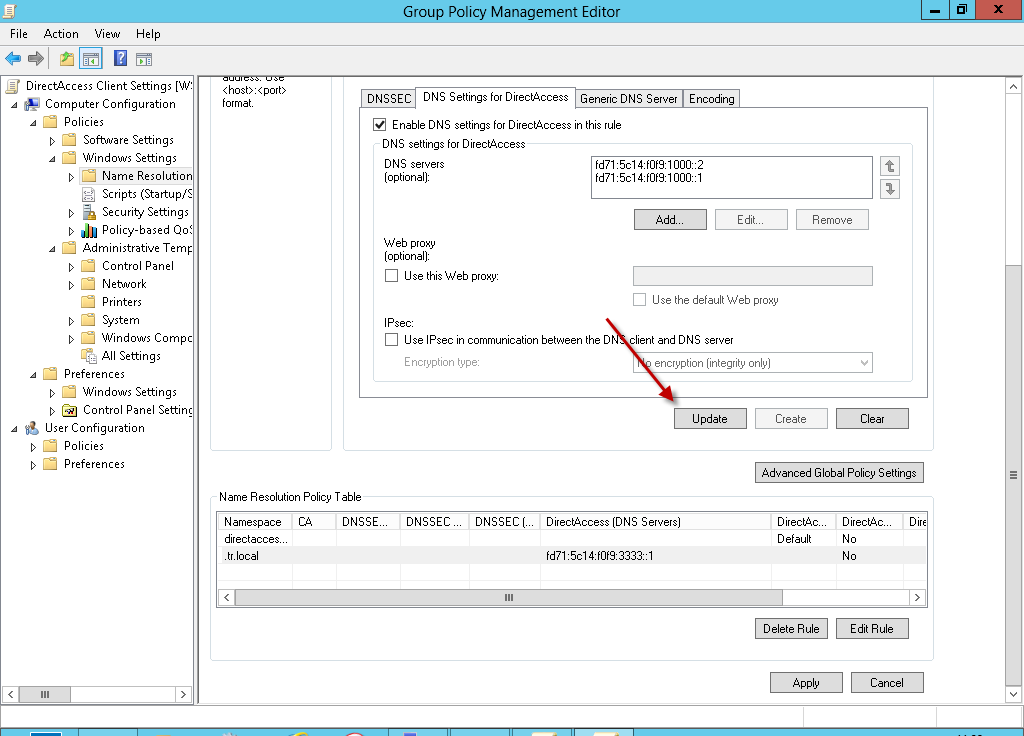

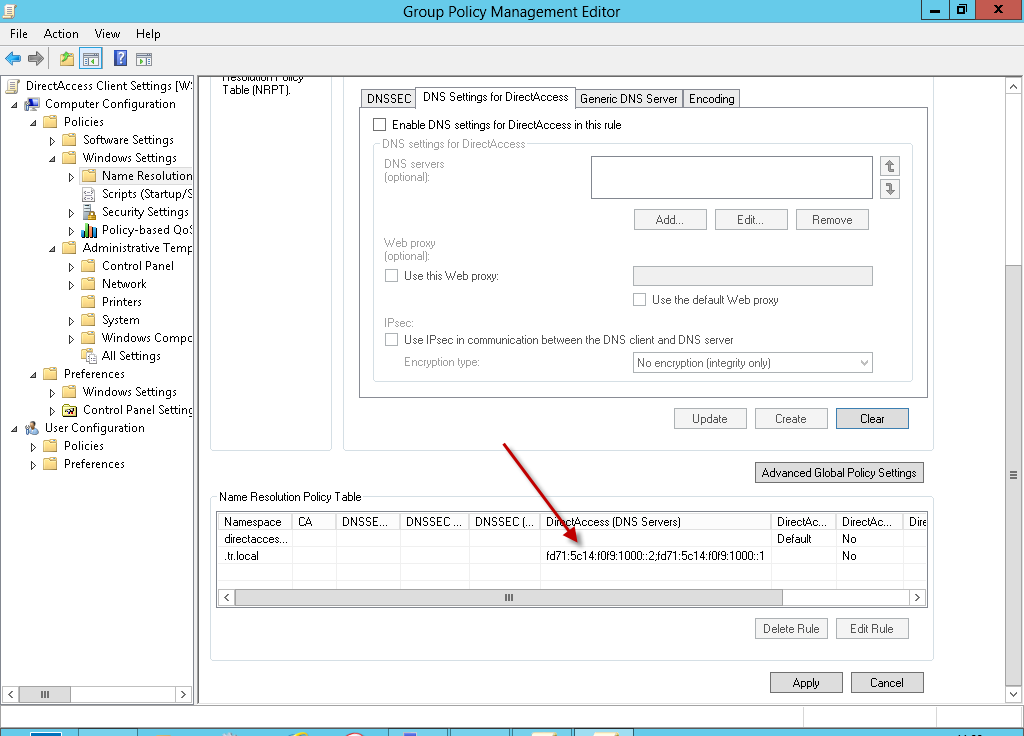

Scroll up slightly and go to the ‘DNS Settings for DirectAccess’ tab.
You will see an IPv6 Address is defined, but we need to replace this with the addresses we retrieved from PowerShell a moment ago.

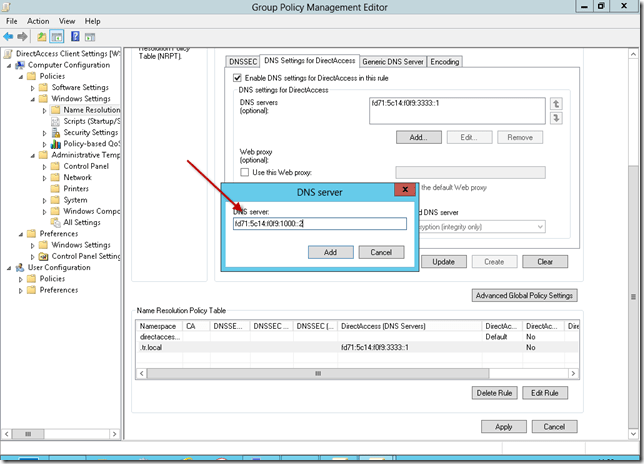

Simply click on Add, and enter the addresses, then select the pre-existing one and remove it.
When you have done that, click on Update.
You will notice that the DNS Server addresses update at the bottom of the details pane.
The next Policy we need to edit is the ‘DirectAccess Server Settings’ policy.
We need to expand Computer Configuration, Windows Settings, Security, Windows Firewall w/Advanced Security.

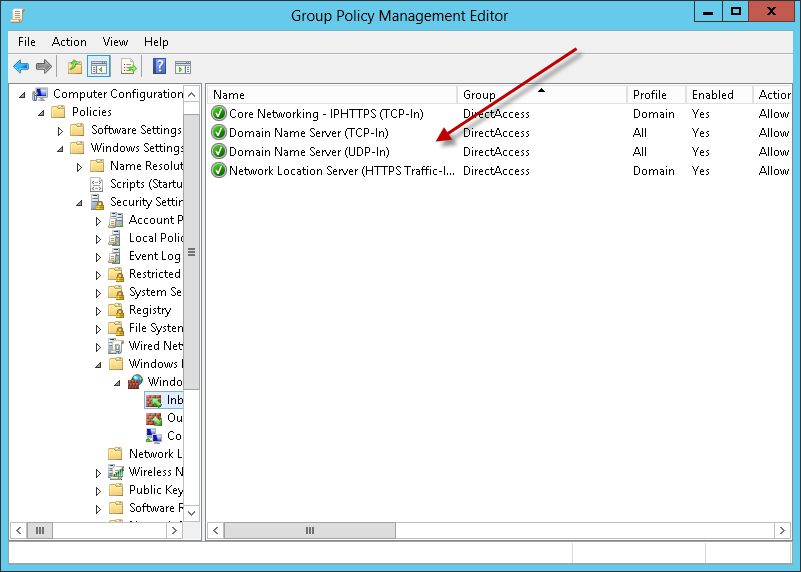

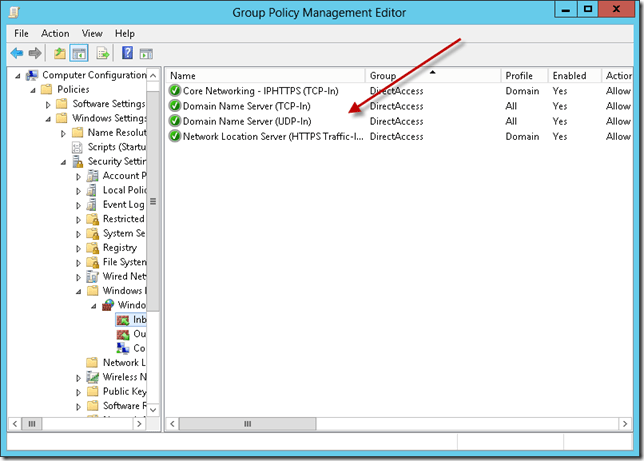

Find the ‘Inbound Rules’ and you will see we have 4 rules defined.
We need to edit the middle two, Domain Name Server (TCP –In & UDP-In)
Right click these in turn, and go to properties, then the scope tab. Remove the address that is present, and add the IPv6 Addresses from the previous step.

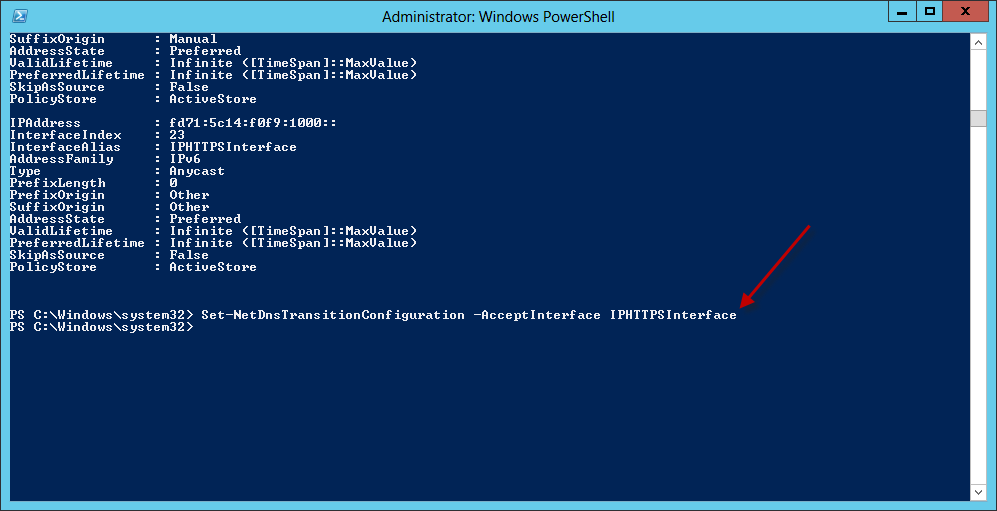

Next we will use another PowerShell command to change DNS64 configuration to listen on the DirectAccess interface…

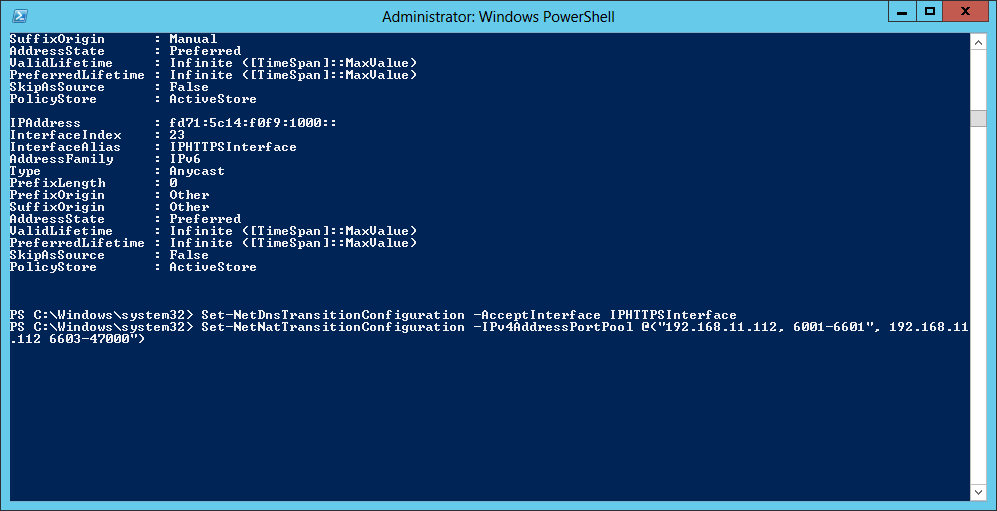

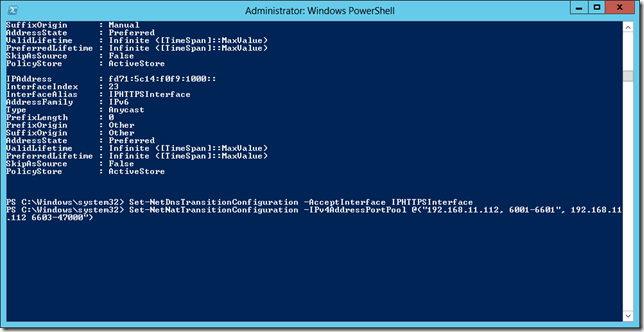

Set-NetDnsTransitionConfiguration –AcceptInterface IPHTTPSInterface
..and yet more PowerShell.
You see, people mocked me when i stood up and said PowerShell was important, well, whose laughing now eh?
The following command relates to your own internal IP address for the Essentials Server, so replace 192.168.11.112 with whatever is relevant to your server.
Set-NetNatTransitionConfiguration –IPv4AddressPortPool @(“192.168.11.112, 6001-6601”, “192.168.11.112, 6603-47000”)

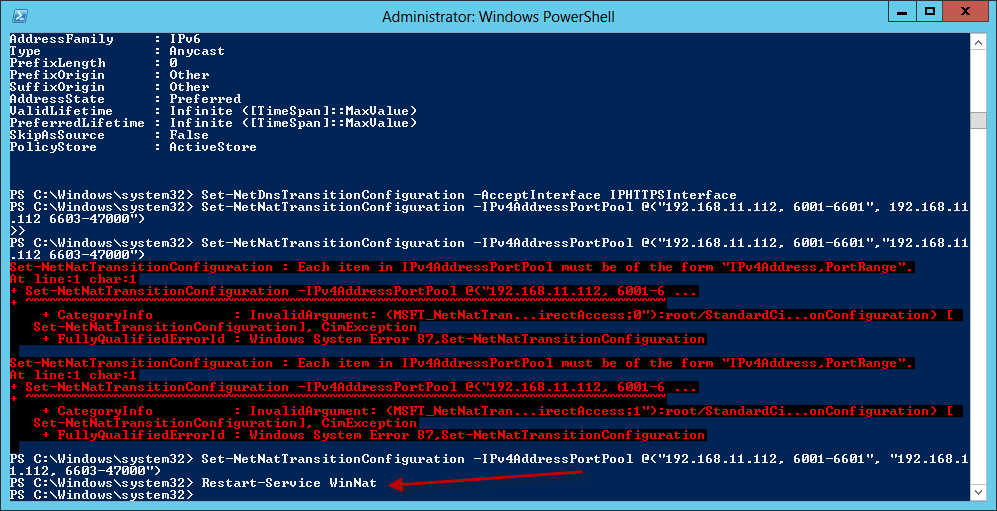

Make sure you have the syntax exactly right, or it does not work so good.
Now, the final PowerShell command.
Restart-Service WinNat
That’s it. That was the final piece of configuration to get your Essentials Server setup for DirectAccess.

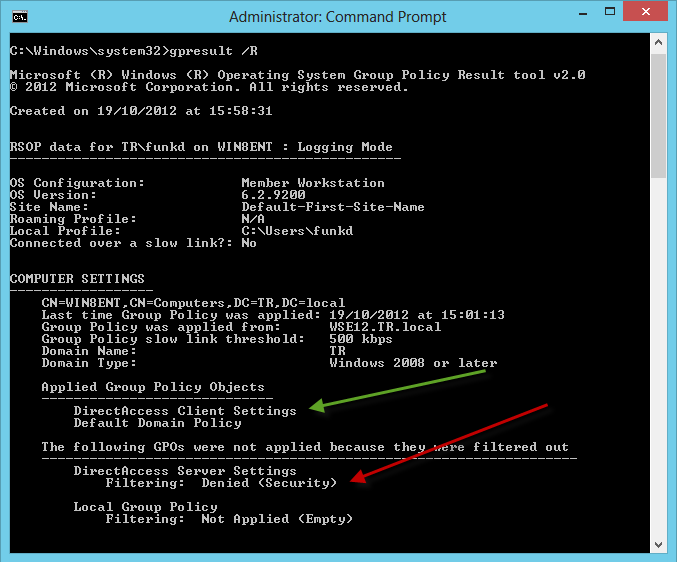

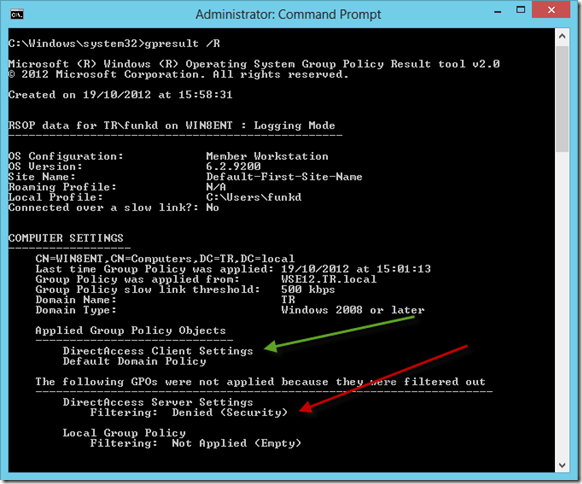

At this point we can make sure our Windows 8 computer accounts are members of the DirectAccessComputers group, make sure the GPOs are updated, and then take them off site and we should have DirectAccess.
I love this picture, from the Windows 8 Start screen. I am using it here to signify being out of the office.
So, assuming i am indeed out of the office i can run the following command to check my DA status.
NetSH DNS Show State
As you can see above, it is showing that i am Outside the corporate network. Great.

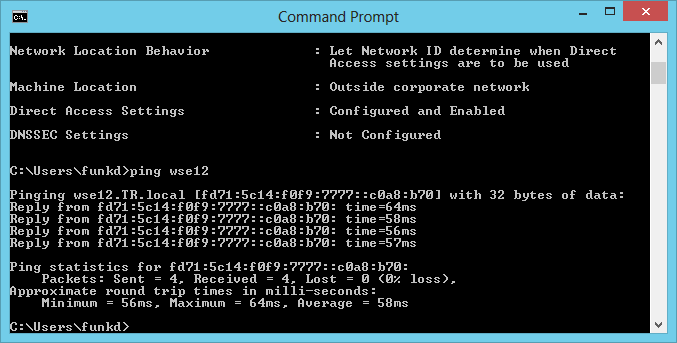

I can also verify connectivity with a Ping.. As you can see the response is from the IPv6 Address of my server.

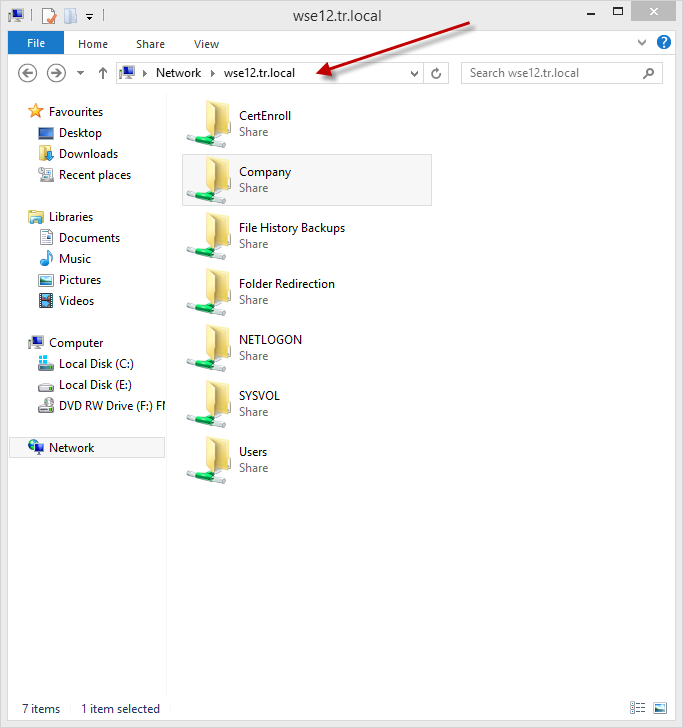

Now the real test, can i open up a folder from the Server?
Yes i can!
Enjoy the brave new world of DirectAccess.
*I mentioned earlier about step 4c. There appears to be a problem in the current build relating to enabling Windows 7 Clients, and Computer Certificate authentication. Microsoft are aware and we expect a resolution soon i will update this post with the relevant steps when they are confirmed. I also believe all the current problems on the official documentation will be resolved shortly and are probably only erroring on my systems as it is me.
